CRY8120 Series

Acoustic Imager: Precision in Sound

Raising Performance Standards with the CRYSOUND Acoustic Imager

Experience next-level industrial inspections with the next generation of the CRYSOUND Acoustic Imager: leading the way in reliable technology for leak detection, real-time electrical discharge analysis, and thorough mechanical fault diagnosis.

Available only in Europe and French-speaking African countries.

Precision at Its Best

200 MEMS Sensors

The CRY8120 Series utilizes a 200-channel MEMS microphone array, providing unmatched accuracy in detecting gas leaks, electrical discharges, and mechanical faults from greater distances.

Broad Frequency Range

Covers a wide frequency range from 2 kHz to 100 kHz, ensuring no detail goes unnoticed. The focusing function eliminates environmental interference and noise, allowing you to focus on the task at hand.

See More with Thermal Integration

Optional Thermal Camera Module

Enhance your inspections with the attachable thermal camera module. Integrate infrared data with acoustic imaging for a comprehensive, multidimensional view of your inspection area.

Dynamic Viewing Options

Easily switch between ultrasound and thermal views. Drag and position the thermal image for split-screen or full thermal view mode, tailored to your specific needs.

Speak with a Specialist about
Ultrasound Technology

Speak with a Specialist about
Ultrasound Technology

Customizable and User-Friendly

High-Resolution Touchscreen

An 8-inch display with 1920 x 1200 resolution and 600 nits brightness offers clear, detailed visuals, even in bright conditions.

Tailored to Your Workflow

Create custom templates and widgets, including PRPD spectrograms, time domain charts, and thermal images. The fastest processor in the industry supports real-time data analysis and PRPD chart display.

Built for the Field

Durable Design

Engineered to withstand harsh industrial conditions (IP54), the CRY8120 Series is lightweight yet robust, tested to operate from -20 °C to +50 °C and withstand drops up to 1.2 meters.

Explosion-Proof Option

Available in an explosion-proof EX version (IECEx) for safe use in hazardous environments (coming soon).

Long-Lasting Performance

Removable Battery System

Ensure uninterrupted work with a removable battery providing up to 5 hours of continuous use. Extend operation to 10 hours with an optional second battery.

Eco-Friendly Technology

Supports green initiatives by optimizing resource usage and mitigating energy losses.

Advanced Reporting Software

Real-Time Report Preview and Editing

Instantly view and edit reports in real-time, ensuring consistency with the final exported report.

Effortless Data Import via Wi-Fi

Seamlessly import data from the Acoustic Imaging Camera to your PC via Wi-Fi. Access stored images and videos, and import them to the PC with a simple click.

Comprehensive Offline Editing Capabilities

Modify recorded parameters such as dynamic range, frequency, and imaging points without an internet connection. Perform thorough analyses in the field or office.

Multimode Display of Acoustic and Thermal Images

The software displays both acoustic and thermal parameters on a single interface, providing enhanced insights and a multidimensional view of the inspection data.

Get CRYSOUND

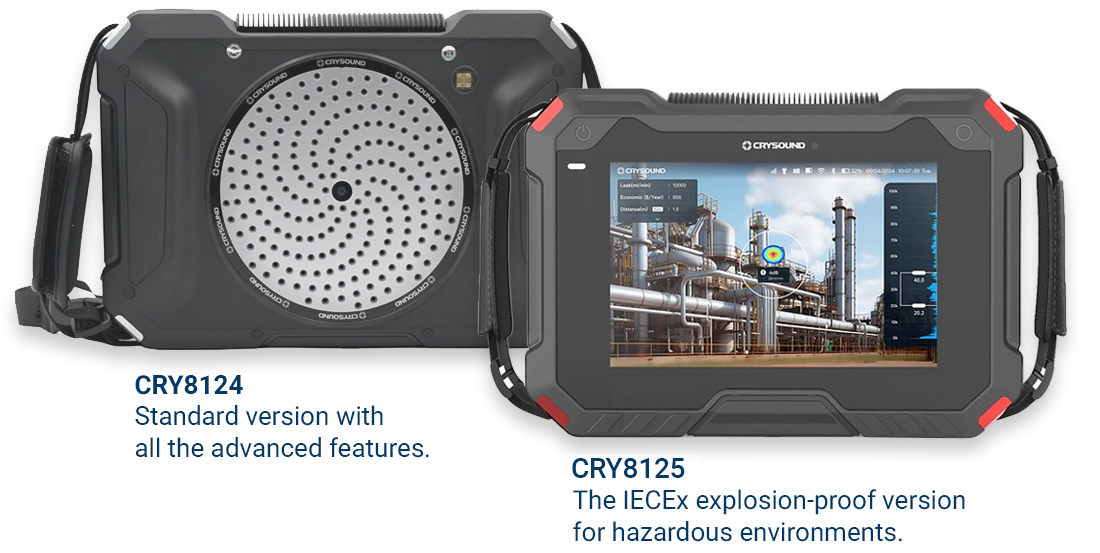

CRY8210 Series

CRY8124

Standard version with all the advanced features.
Available in PRO version with the LEAKChecker.

CRY8125

(Coming Soon)
The IECEx explosion-proof version for hazardous environments.

CRY2600 Series

CRY2620

Basic version, 64 MEMS. Available in PRO version with the LEAKChecker.

CRY2623

Superior version, 128 MEMS. Available in PRO version with the LEAKChecker.

CRY2624

ATEX version.
128 MEMS.

Pro Version

The included LEAKChecker in the CRYSOUND PRO kit helps you locate and pinpoint leaks more easily than ever before. Our versatile range ensures you have the right solution for energy-saving and preventive maintenance, tailored to your needs.

CRY8124 Pro Kit

Standard version 200 MEMS
+ LEAKChecker.

CRY2620 Pro Kit

Basic version (previous generation)
64 MEMS + LEAKChecker.

CRY2623 Pro Kit

Superior version (previous generation)
128 MEMS + LEAKChecker.
